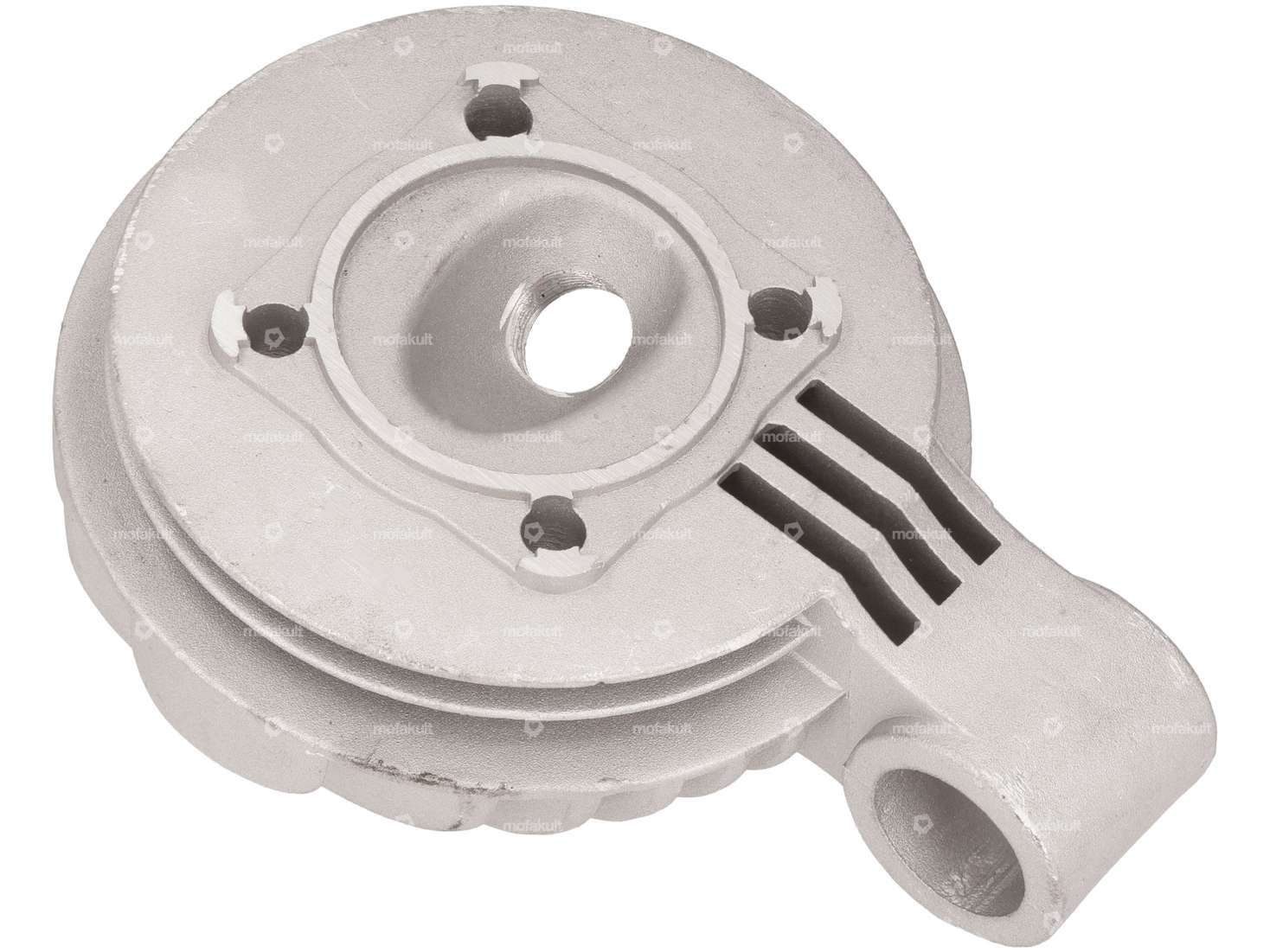

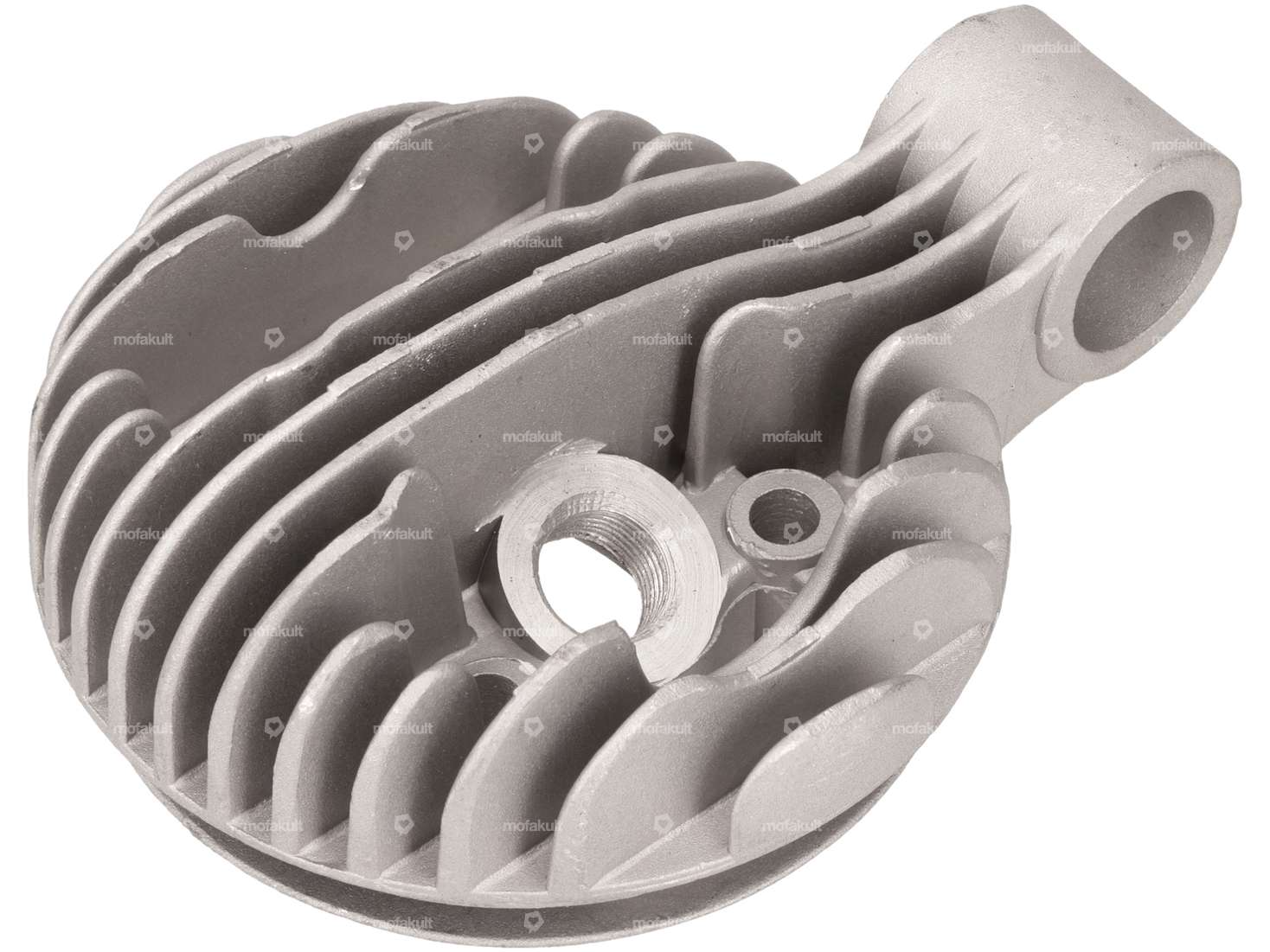

Cylinder head | Sachs 50/2

Diaphragm insert Sachs 50/2

Area of application: Standard · Material: Brass · Number of flaps: 2 pcs · Membrane material: Spring steel · Number of fixing points: 2 pcs · Ø mounting hole: 5.2 mm · Mounting type: Screws · Hole spacing: 67 mm · Pony spare part no.: A2624 · Sachs spare part no.: 0286 213 010

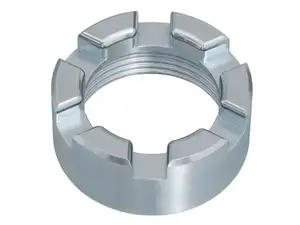

swiing® revival exhaust nut M35x2 galvanized | Sachs 50/2 (A1507)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M35x2 (standard thread) · Nut type: Union nut · Ø outside: 43 mm · Ø inside: 30 mm · Pony spare part no.: A1507 · Sachs spare part no.: 0242 048 101

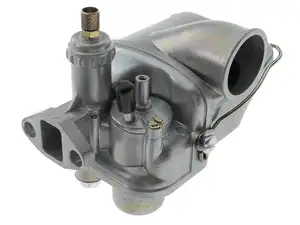

Carburetor 17 mm Bing SSB 1/17/69 reproduction

Area of application: Standard · Area of application: Tuning · Material: Aluminum · Carburetor type: SSB · Total length: 116 mm · Width: 86 mm · Camouflaged: No · Nominal diameter: 17 mm · Height: 99 mm · Hole spacing inlet: 31 mm · Mounting type: Stud bolts & nuts · Ø fuel hose connection: 6.2 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: without choke · Nozzle thread: M7x0.75 · Nozzle size: 76 · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

swiing® revival Silentblock Ø 19.3 x 19 mm | Sachs 50/2 (A1940)

Ø inside: 8.5 mm · Manufacturer: swiing® revival parts · Waistband height: 1.5 mm · Area of application: Standard · Material: Rubber · Material: Steel · Color: black · Surface: raw · Total length: 19 mm · Ø Bundle: 13 mm · Ø Bundle: 15 mm · Ø outside: 19.3 mm · Pony spare part no.: A1940 · Sachs spare part no.: 0260 101 000

Inlet seal 17 mm spigot (5.5 mm) | Sachs 50/3

Thickness: 5.5 mm · Place of use: Admission · Hole spacing inlet: 30 mm

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Surface: blue galvanized · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101 · Sachs spare part no.: 0640 016 102

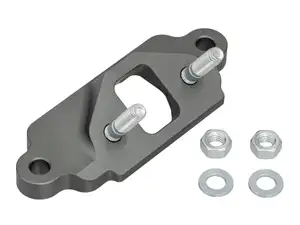

swiing® ingenious intermediate flange 17 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Area of application: Tuning · Surface: anodized · Surface: blue galvanized · Thread type: M5x0.8 (standard thread) · Number of flaps: 2 pcs · Total length: 29 mm · Thickness: 6.9 mm · Width: 80 mm · Mounting type: Screws · Ø inside: 17 mm · Number of fixing points: 4 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Weight: 86 g

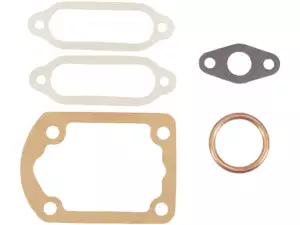

swiing® revival gasket set cylinder diaphragm version | Sachs 50/2

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing paper · Area of application: Standard · Ø cylinder: 38 mm · Ø outlet inside: 28 mm · Hole pattern [mm]: 60 x 40 mm · Number of components: 5 pcs · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm
