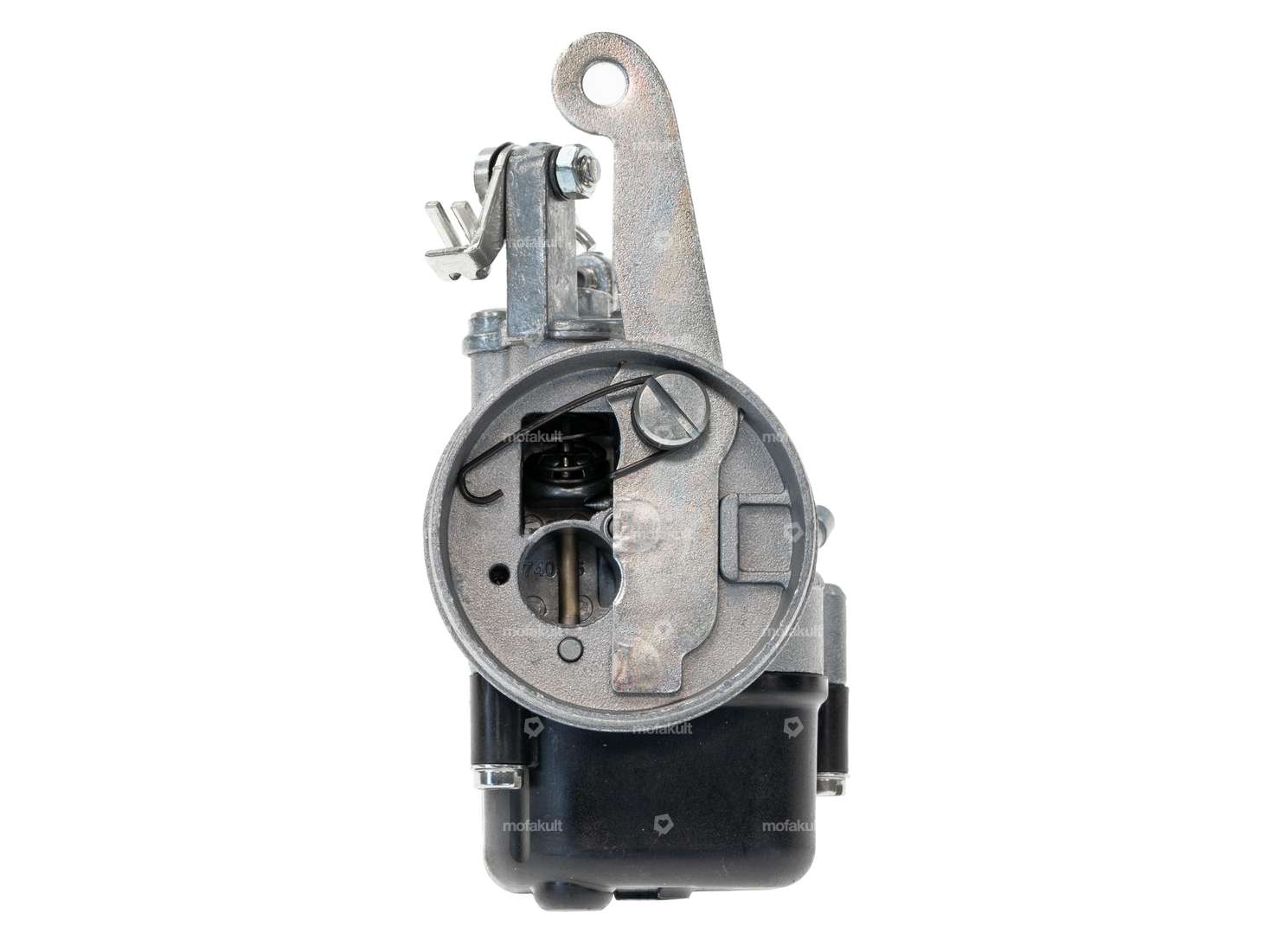

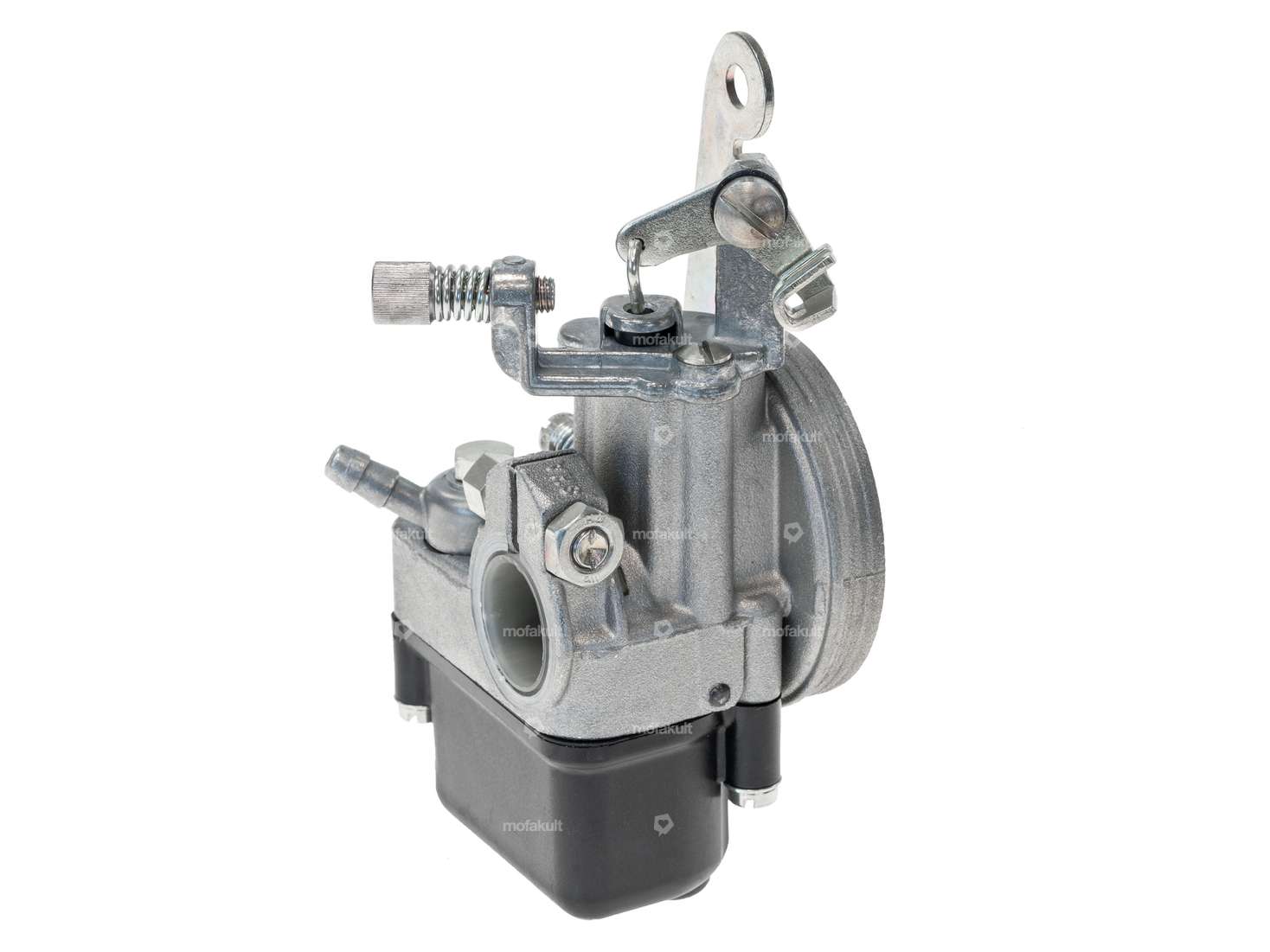

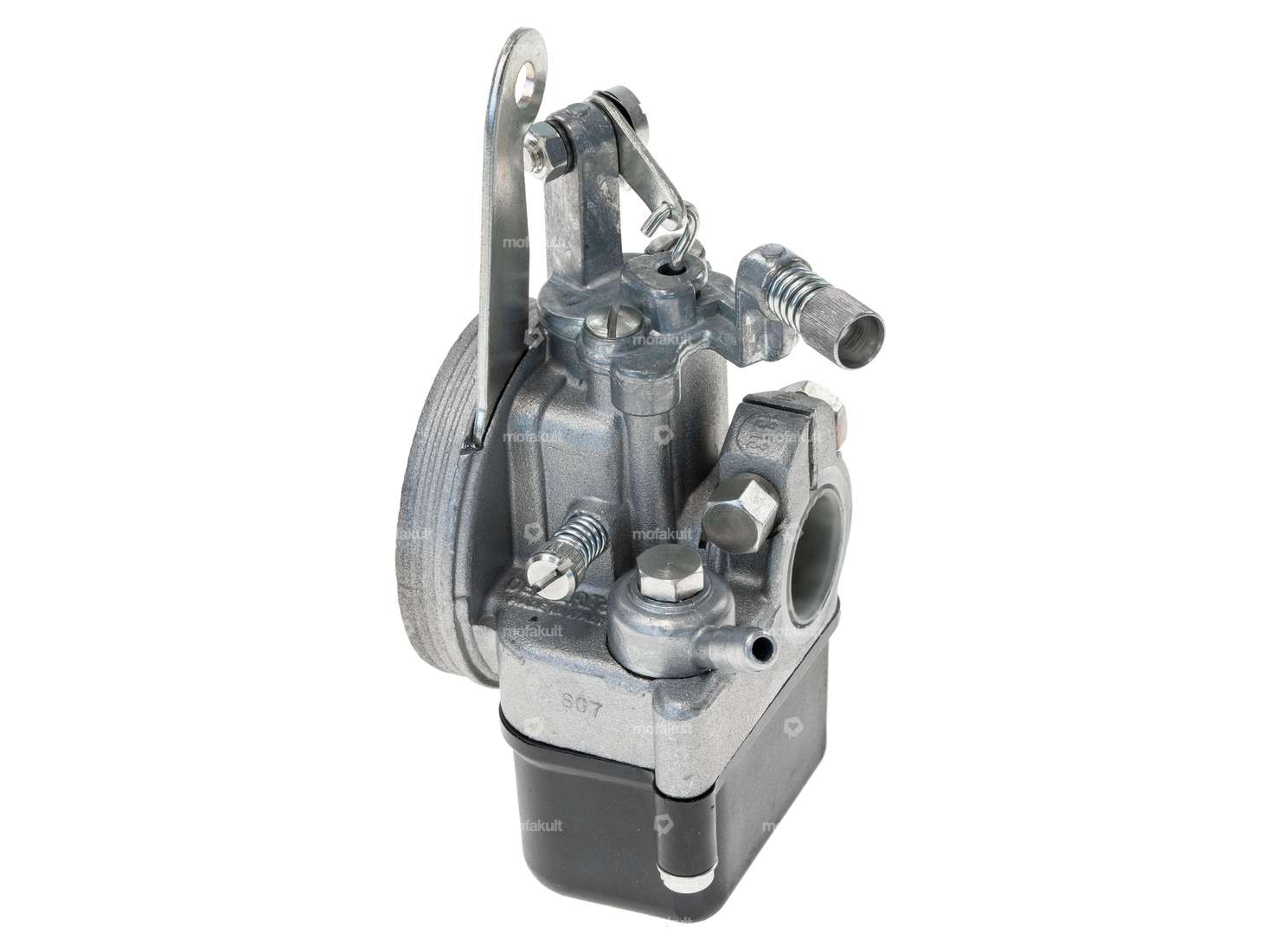

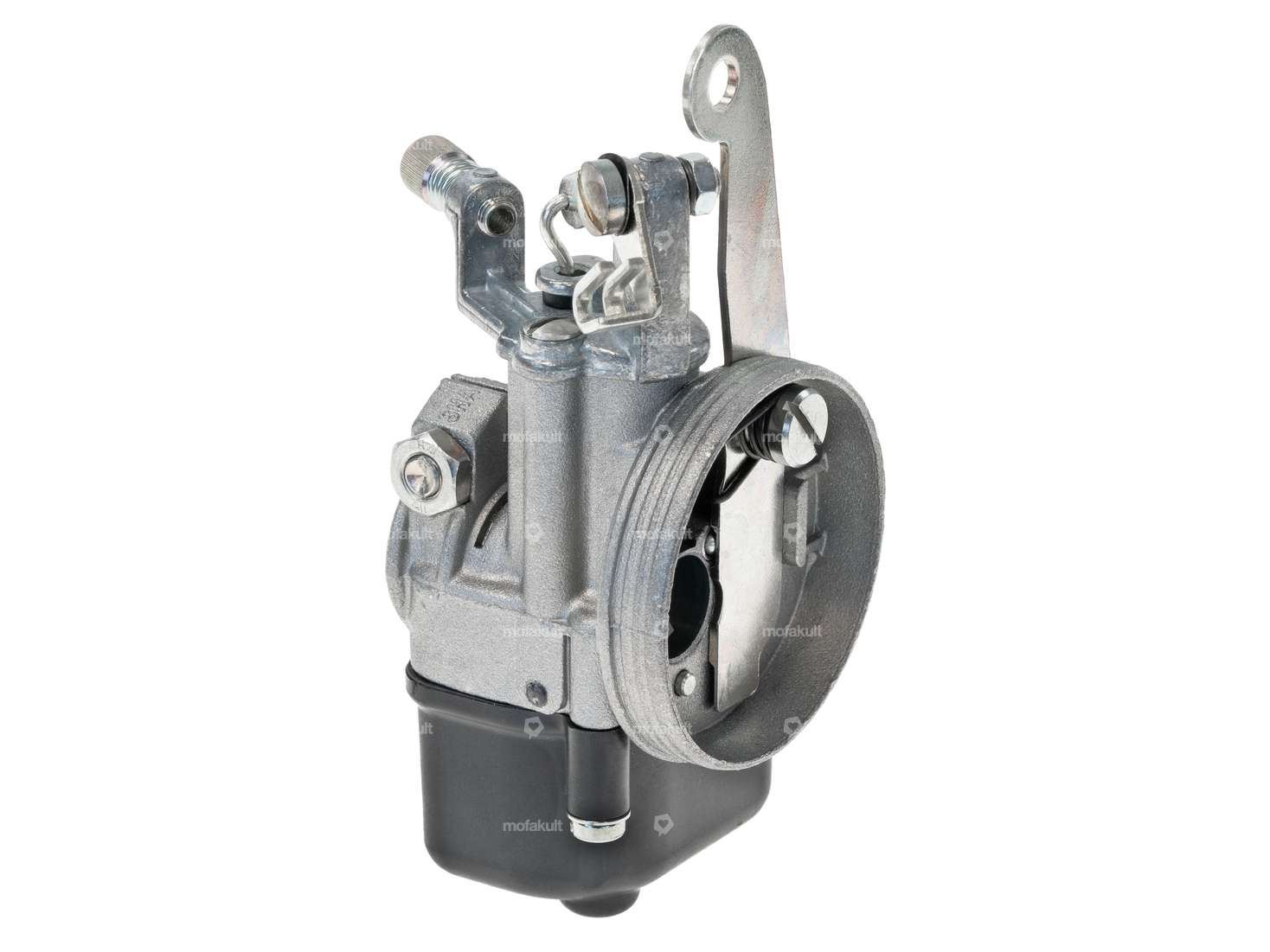

The 13 / 13 SHA racing carburetor impresses with its compact design and fits your Piaggio Si, Boss and Grillo moped / moped.
The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 66
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer sleeve)
Ø external air filter connection: 50.8 mm
Ø passage on air filter side: 13 mm
Ø passage on intake manifold side: 13 mm
Total height: 117.5 mm
Total length: 55 mm
Total width: 60 mm
Matching nozzles and air filters can be found under accessories.
Quality product from the Italian manufacturer Dell'Orto.
Details
| Nominal diameter | 13 mm |
| Manufacturer | Dell'Orto |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Carburetor type | SHA (Piaggio) |
| Choke control | Hand choke |
| Total length | 55 mm |
| Ø fuel hose connection | 6 mm, 5.2 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 66 |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 13 mm |
| Width | 60 mm |
| Ø Output inside | 13 mm |
| Mounting type | Plug connection clamped |
| Height | 118 mm |
| Ø Air filter connection | 50.8 mm |
| Ø Internal connection | 16 mm |
| Camouflaged | No |
| Area of application | Tuning |
Suitable for the following models
| Piaggio | Si |
