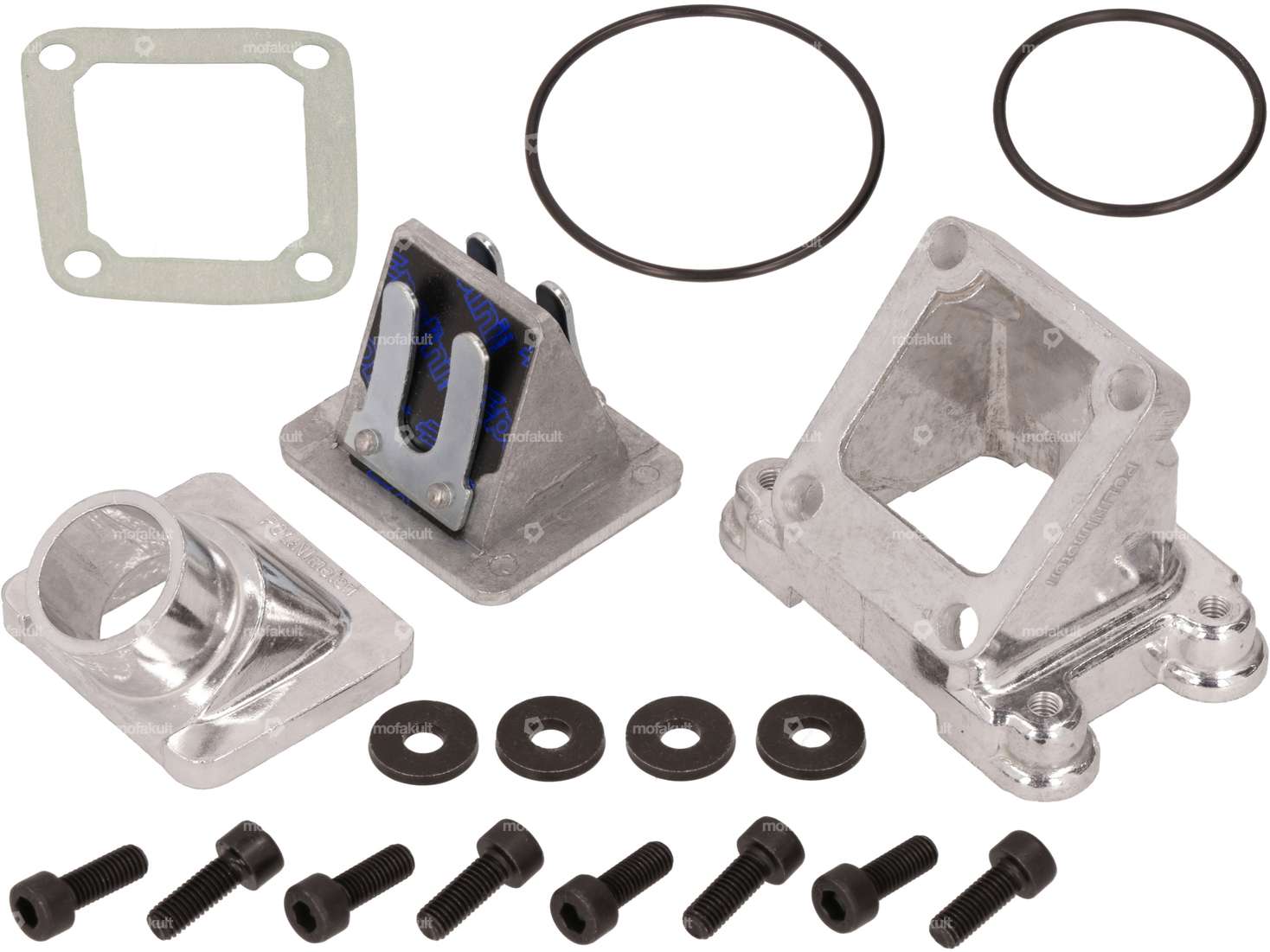

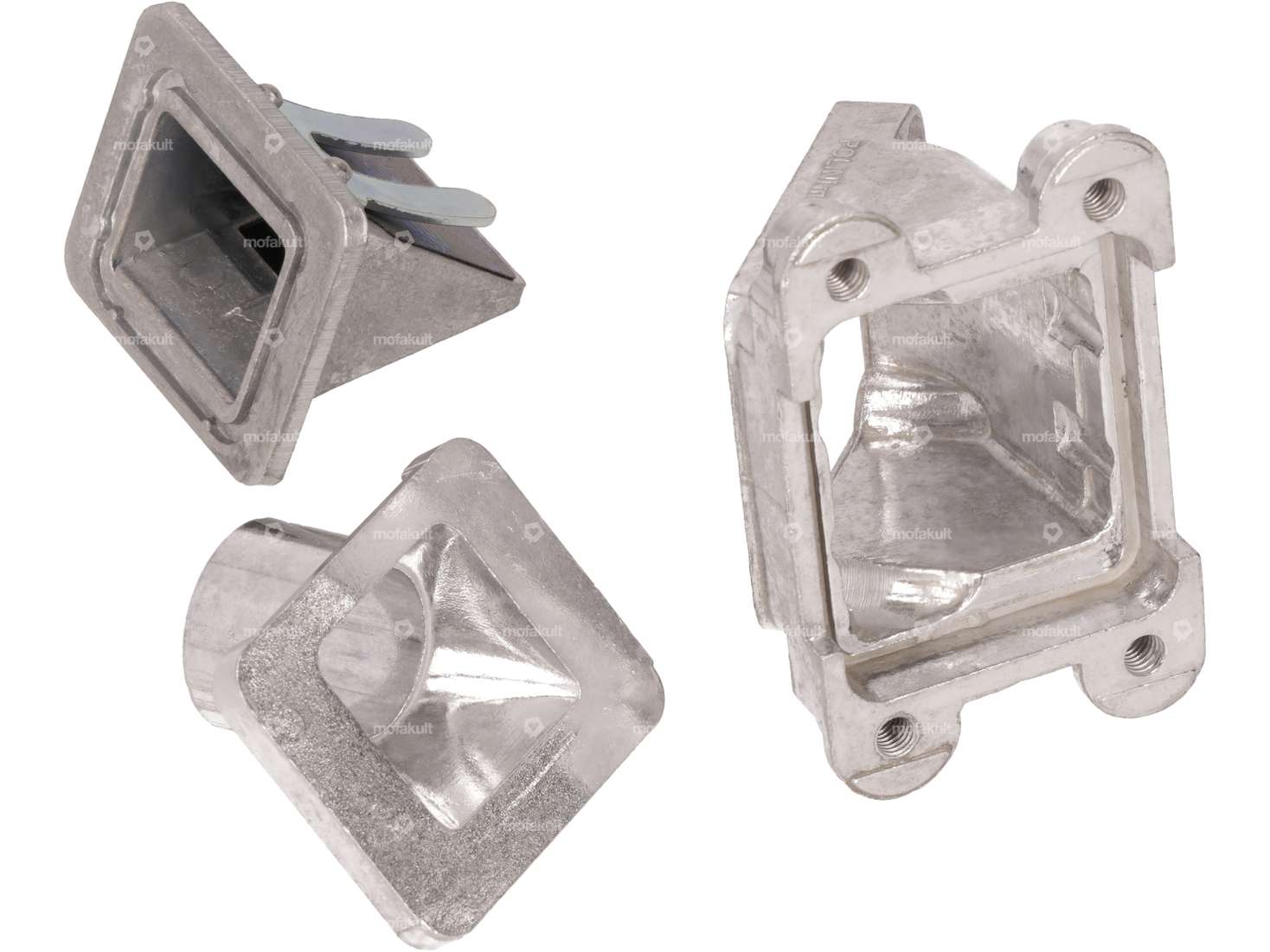

Polini intake system 4-folding diaphragm PHBG

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Ø outside: 24 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Material: Plastic · Surface: glass bead blasted · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thread type: M5x0.8 (standard thread) · Ø inside: 28.6 mm · Ø mounting hole: 5.2 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Racing · Area of application: Tuning

Polini 43.5 mm cylinder kit reed | Puch

Material: Aluminum · Surface: nikasil-coated · Nominal diameter: 43.5 mm · Manufacturer: Polini · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Number of fixing points: 4 pcs · Ø outlet inside: 22 mm · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Area of application: Racing · Area of application: Tuning · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Color: black · Carburetor type: PHBG CS · Nominal diameter: 19 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Total length: 82 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Width: 70 mm · Mixed oil connection: Yes · Height: 124 mm · Mounting type: Plug connection clamped · Vacuum connection: Yes · Choke control: Hand choke · Area of application: Racing · Area of application: Tuning · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45

Starter cable Puch Maxi Ø 1.5 mm x 160 cm

Ø nipple: 8 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.5 mm · Nipple shape: Barrel (transverse) · Cable length: 1600 mm · Nipple length: 12 mm · Area of application: Standard

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Gearbox type: Automatic machine · Contents [ml]: 450 ml · Pony OEM number: A2080 · Sachs OEM number: 0263 014 002

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Material: Steel · Surface: galvanized (blue) · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Cable length: 1650 mm · Area of application: Standard

swiing® revival stud bolt set M6 x 106 mm | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Drive: External hexagon · Width across flats SW: 10 mm · Thread length: 13 mm · Thread length: 18.5 mm · Total length: 106 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

GPO 43.5 mm cylinder head tuning Polini new version | Puch

Manufacturer: GPO · Material: Aluminum · Number of fixing points: 4 pcs · Ø cylinder: 43.5 mm · Total length: 135 mm · Width: 140 mm · Height: 55 mm · Decompressor: No · Area of application: Tuning

GPO 43.5 mm cylinder head with O-ring, Polini Tuning new version | Puch

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Width: 135 mm · Height: 55 mm · Total length: 140 mm · Ø cylinder: 43.5 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Area of application: Tuning

Polini CP 19 mm carburetor (hand choke)

Manufacturer: Polini · Area of application: High End · Camouflaged: No · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Nominal diameter: 19 mm · Carburetor type: CP · Total length: 73.5 mm · Ø without reducing sleeve: 26 mm · Width: 66 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Height: 135 mm · Ø Air filter connection: 46 mm · Mounting type: Plug connection clamped · Ø Internal connection: 24 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle block: 35-12 · Nozzle size: 66 · Size of secondary nozzle: 42

Polini 43.5 mm cylinder kit reed valve with head (version 2.0) | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Camouflaged: No · Material: Aluminum · Surface: nikasil-coated · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Area of application: Racing · Area of application: Tuning
