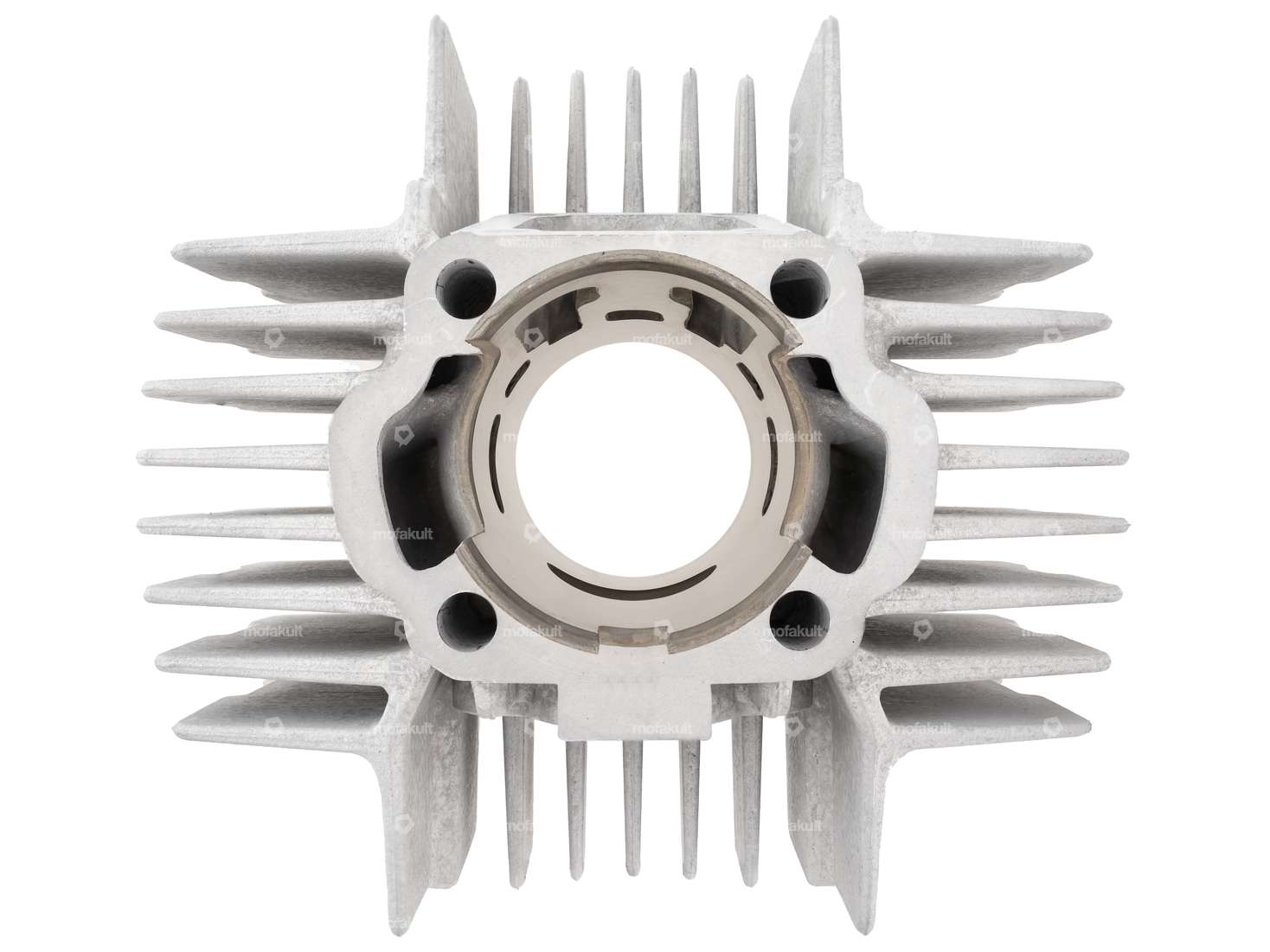

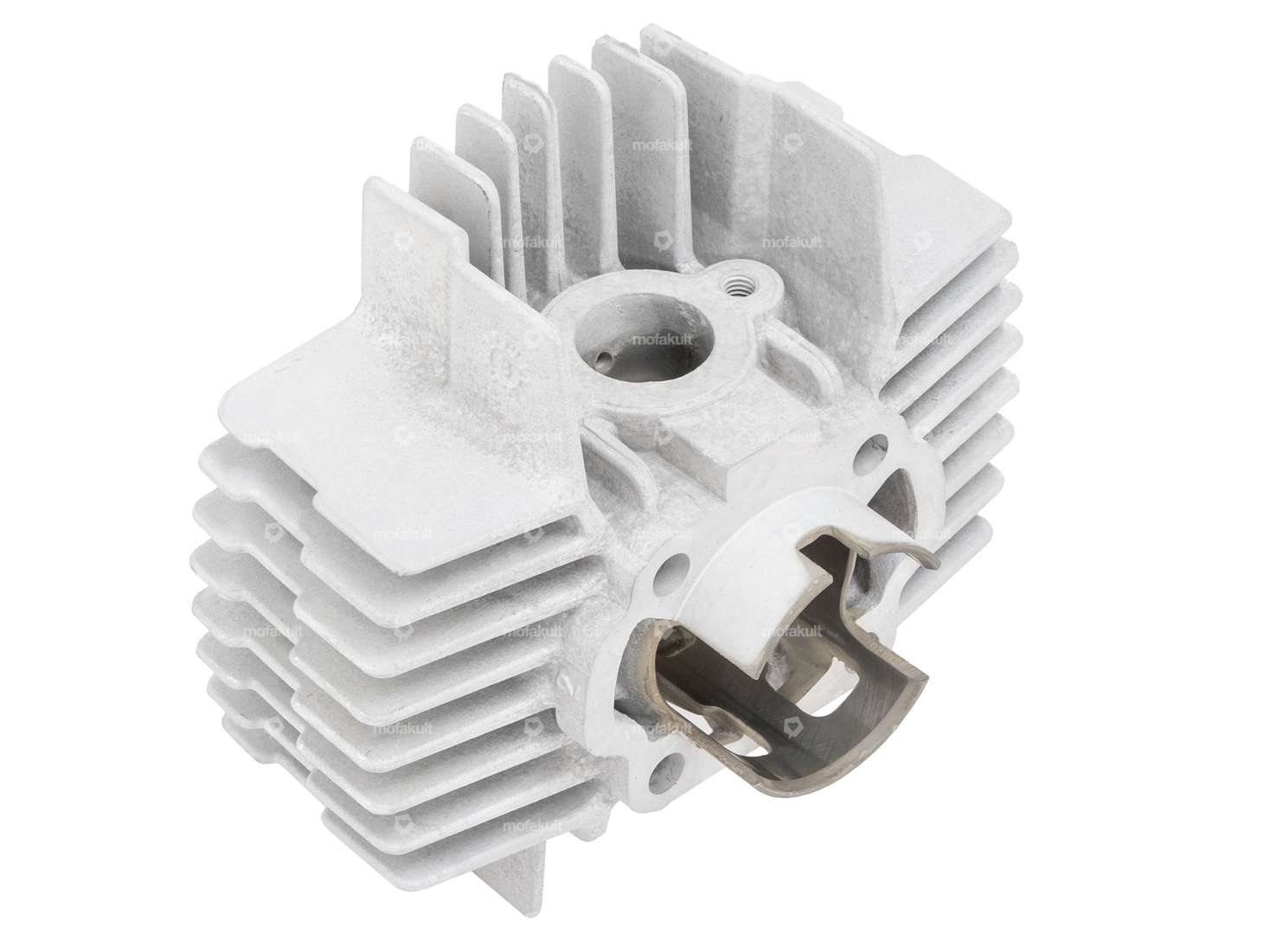

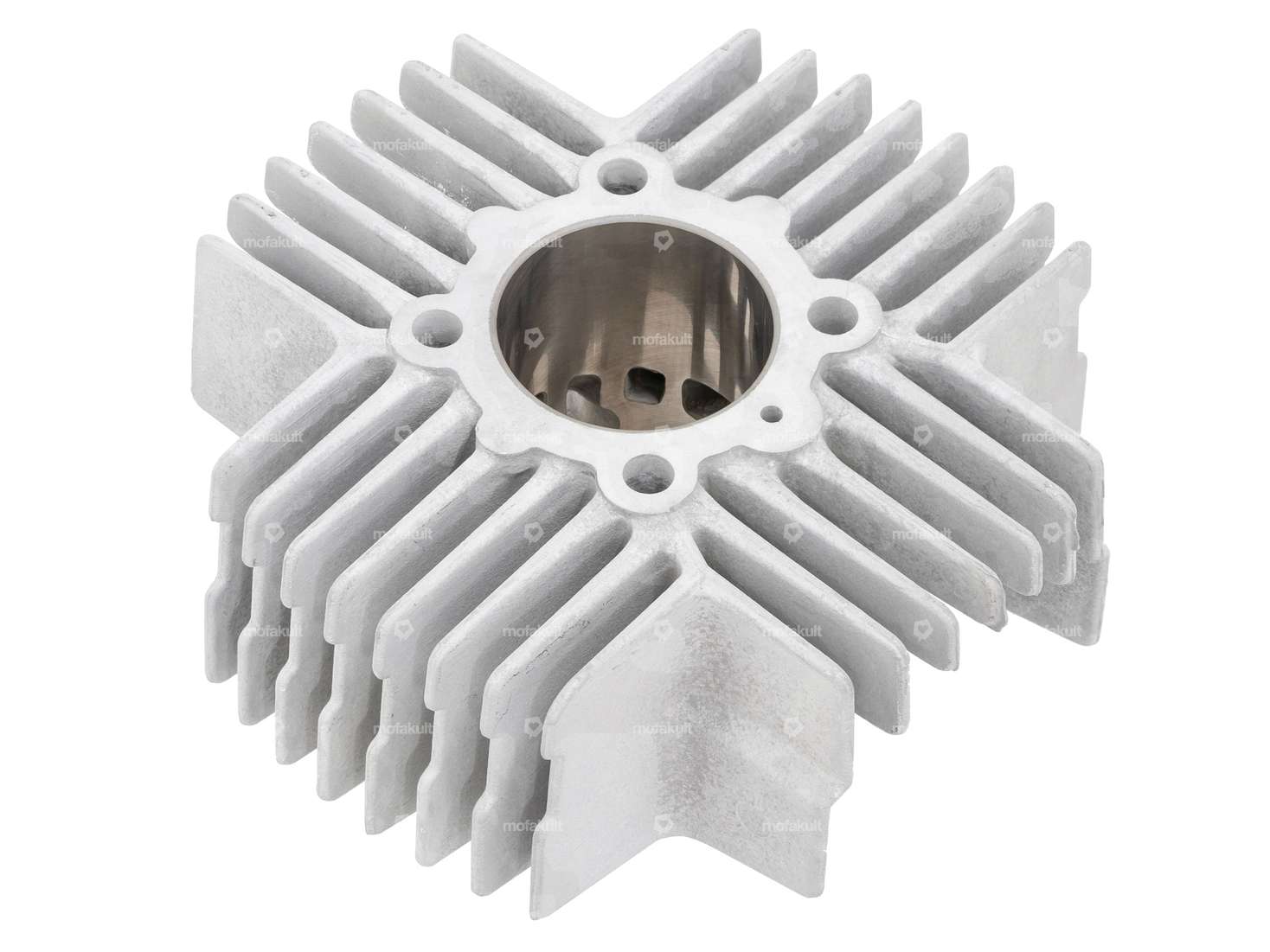

First-class racing kit with 64 cc displacement – the preferred choice of many racers with Puch mopeds / mopeds.
The cylinder fits your Maxi with E50 engine or X30 Sport with Z50 engine, among others.
In combination with the supplied 2-valve reed valve system, the racing cylinder will give you plenty of torque even from low revs. Thanks to the use of a single piston ring, the tuning cylinder is also extremely high revving and aggressive. The performance often exceeds that of 45 mm cylinder heads. The workmanship is high quality and the nickel-silicon carbide coating (also known under the trademarked brand name Nikasil®) ensures durability and longevity.

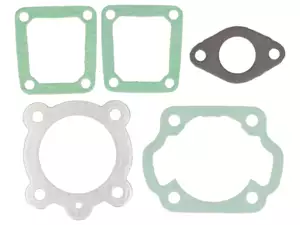

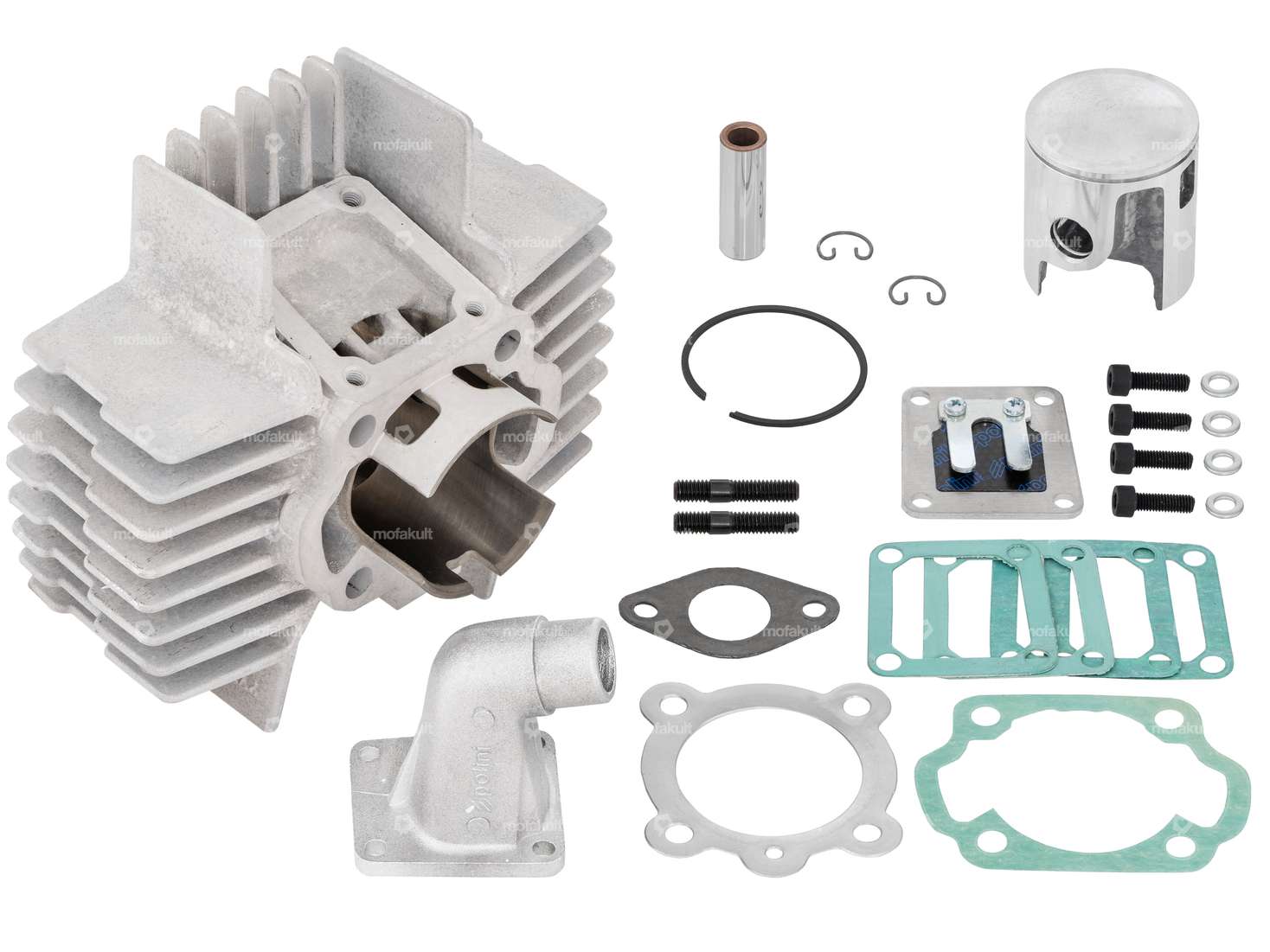

In addition to the cylinder head, the scope of delivery also includes the piston, clips, bolts and a piston ring. The base and head gasket and the complete diaphragm system are also included.
Details
| Nominal diameter | 43.5 mm |
| Manufacturer | Polini |
| Material | Aluminum |
| Area of application | Tuning, Racing |
| Displacement | 65 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 48 mm |
| Surface | Nickel silicon carbide (known as Nikasil®) |
| Camouflaged | No |
| Ø outlet inside | 22 mm |
| Inlet window | 26 x 21 |
| Ø piston pin (B) | 12 mm |
| Hole pattern [mm] | 44 x 44 |
| Thread inlet | M5x0.8 (standard thread) |
| Hole spacing inlet | 32 mm, 39 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products

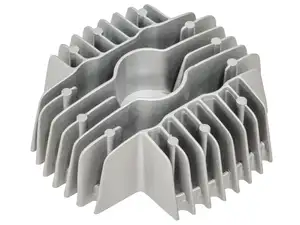

GPO 43.5 mm cylinder head with O-ring, Polini Tuning new version | Puch
Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 43.5 mm · Total length: 140 mm · Width: 135 mm · Height: 55 mm · Candle thread: short · Decompressor: No · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Area of application: Tuning
61,70 EUR
Polini piston 43.5 mm type A | Puch
Manufacturer: Polini · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.45 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring impact: Internal fuse (IS) · Piston ring mold: Rectangular ring · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Piston weight: 93 g
108,70 EUR
Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50
Material: Aluminum · Surface: blank · Total length: 50 mm · Width: 42.5 mm · Width: 46 mm · Hole pattern [mm]: 32 / 36 x 39 · Thickness: 12 mm · Ø mounting hole: 5.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning
34,20 EUR
Membrane transpacer Polini Trapez 6 mm aluminum | Puch ZA50
Material: Aluminum · Surface: blank · Total length: 50 mm · Width: 46 mm · Hole pattern [mm]: 32 / 36 x 39 · Thickness: 6.15 mm · Ø mounting hole: 5.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning
30,80 EUR
Polini 43.5 mm cylinder kit reed valve with head (version 2.0) | Puch
Nominal diameter: 43.5 mm · Manufacturer: Polini · Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Area of application: Racing · Area of application: Tuning · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Camouflaged: No · Ø outlet inside: 22 mm · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)
457,90 EUR

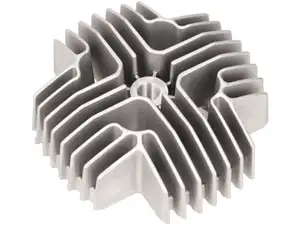

Polini 43.5 mm cylinder head | Puch
Manufacturer: Polini · Material: Aluminum · Ø cylinder: 43.5 mm · Hole pattern [mm]: 44 x 44 · Candle thread: long · Number of fixing points: 4 pcs · Decompressor: No · Total length: 145 mm · Width: 135 mm · Height: 48 mm · Area of application: Racing · Area of application: Tuning
91,50 EUR
Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch
Manufacturer: Polini · Camouflaged: No · Material: Aluminum · Material: Plastic · Surface: glass bead blasted · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thread type: M5x0.8 (standard thread) · Ø inside: 28.6 mm · Ø outside: 24 mm · Ø mounting hole: 5.2 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Racing · Area of application: Tuning
160,20 EUR

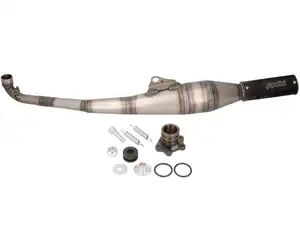

Polini racing exhaust "for race" blanco | Puch Maxi, X30
