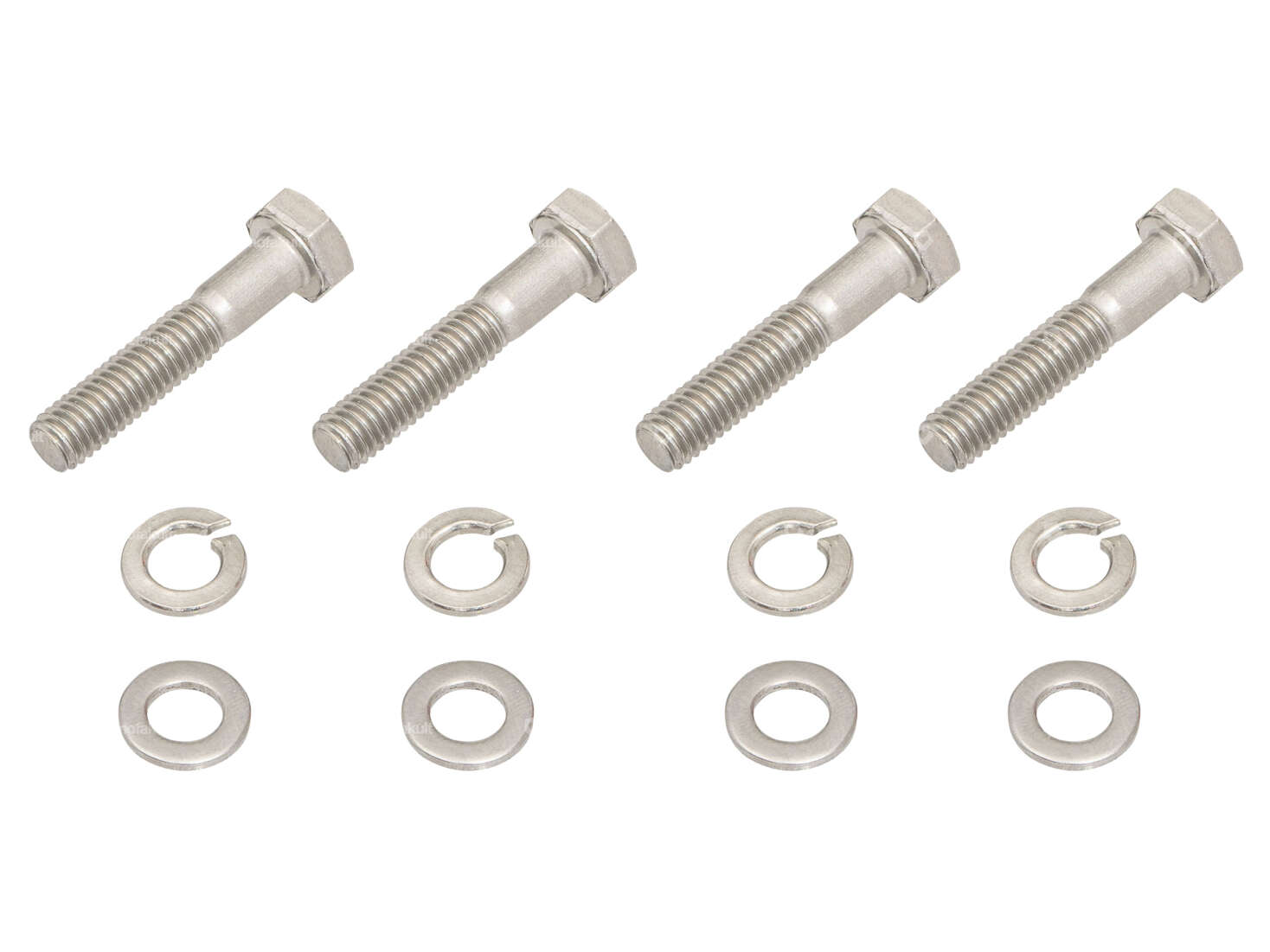

swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4

Cylinder head | Sachs 50/2

Number of fixing points: 4 pcs · Decompressor: Yes · Pony spare part no.: A1069 · Pony spare part no.: A1070 · Sachs spare part no.: 0213 104 006 · Sachs spare part no.: 0213 106 000

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: blue · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Cylinder head Sachs 50/3, 50/4

Ø outside: 128 mm

swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Color: silver · Total length: 34 mm · Screw head: Hexagon · Thread type: M6x1 (standard thread) · Drive: External hexagon · Width across flats SW: 10 mm · Thread length: 22 mm · Shank: Yes · Ø shaft: 5.85 mm · Shank length: 8 mm · Strength class: 10.9 · Number of components: 12 pcs · Area of application: Standard

Cylinder head wind cooled NOS | Sachs 50/2

Manufacturer: Sachs · Ø outside: 105 mm · Area of application: Original · Pony spare part no.: A1064 · Alternative version of Sachs spare part no.: 0213 033 003 · Sachs spare part no.: 0213 121 105

swiing® ingenious cylinder head 41 mm tuning | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 mm · Width: 95 mm · Height: 50 mm · Ø outside: 98 mm · Total length: 127 mm · Ø screw holder: 19 mm · Candle thread: long · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Decompressor: M10x1.5 · Area of application: Standard

Cylinder head wind cooled with deco NOS | Sachs 50/2

Manufacturer: Sachs · Ø outside: 105 mm · Number of fixing points: 4 pcs · Area of application: Original

Diaphragm insert Sachs 50/2

Material: Brass · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Hole spacing: 67 mm · Ø mounting hole: 5.2 mm · Number of fixing points: 2 pcs · Area of application: Standard · Pony spare part no.: A2624 · Sachs spare part no.: 0286 213 010

swiing® revival exhaust nut M35x2 galvanized | Sachs 50/2 (A1507)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Nut type: Union nut · Ø outside: 43 mm · Ø inside: 30 mm · Thread type: M35x2 (standard thread) · Pony spare part no.: A1507 · Sachs spare part no.: 0242 048 101

Carburetor 17 mm Bing SSB 1/17/69 reproduction

Total length: 116 mm · Area of application: Standard · Area of application: Tuning · Material: Aluminum · Nominal diameter: 17 mm · Carburetor type: SSB · Ø fuel hose connection: 6.2 mm · Width: 86 mm · Height: 99 mm · Hole spacing inlet: 31 mm · Mixed oil connection: No · Mounting type: Stud bolts & nuts · Vacuum connection: Yes · Choke control: without choke · Nozzle thread: M7x0.75 · Camouflaged: No · Nozzle size: 76 · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

swiing® revival Silentblock Ø 19.3 x 19 mm | Sachs 50/2 (A1940)

Manufacturer: swiing® revival parts · Material: Rubber · Material: Steel · Surface: raw · Ø inside: 8.5 mm · Ø outside: 19.3 mm · Total length: 19 mm · Color: black · Ø Bundle: 13 mm · Ø Bundle: 15 mm · Waistband height: 1.5 mm · Area of application: Standard · Pony spare part no.: A1940 · Sachs spare part no.: 0260 101 000

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Total length: 23 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Area of application: Standard · Thread length: 6 mm · Thread length: 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101 · Sachs spare part no.: 0640 016 102

Exhaust clamp 70 mm chrome wide version.

Manufacturer: Made in Portugal · Thickness: 2 mm · Color: Chrome · Material: Steel · Surface: chrome-plated · Nominal diameter: 70 mm · Width: 28 mm · Clamping diameter: 67 - 71 mm · Ø mounting hole: 8.2 mm · Number of fixing points: 1 pcs

swiing® ingenious cigar Ø 28 / 70 mm chrome (reso exhaust)

Manufacturer: swiing® ingenious parts · Total length: 730 mm · Color: Chrome · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Nominal diameter: 40 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Weight: 86 g

swiing® revival gasket set cylinder diaphragm version | Sachs 50/2

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing paper · Ø cylinder: 38 mm · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Number of components: 5 pcs · Hole pattern [mm]: 60 x 40 mm · Area of application: Standard
